Design specs

Last verified: 2026-07-26 against dev at f0388abb.

Point-in-time design records — the decisions and system shape behind SDP. These are design-time material, not maintained product reference. For the full documentation map, start at docs/index.md.

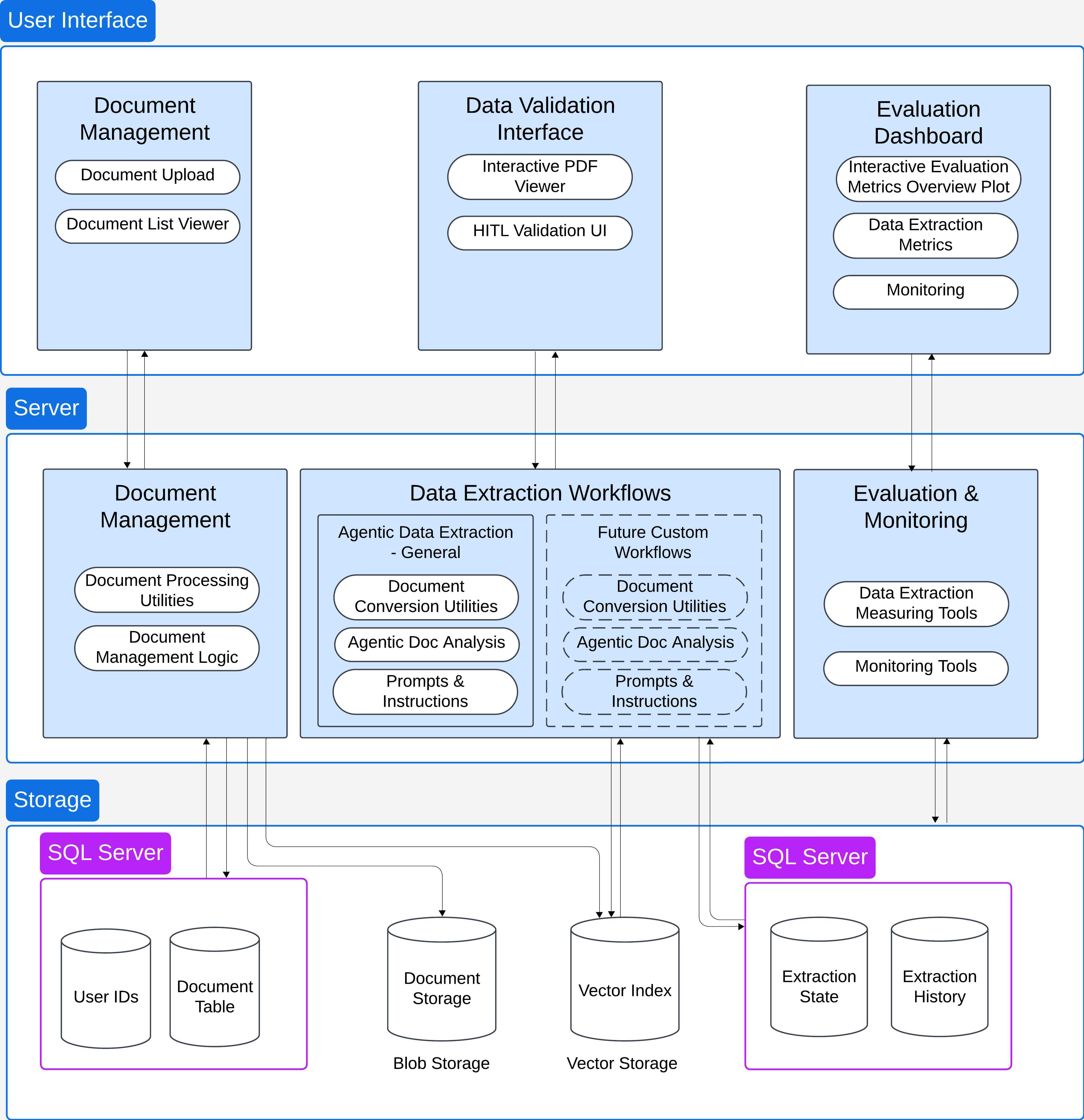

  • reference architecture diagram
    • This is borrowed from a diagram created for LogicStream, and it's almost all relevant. You can ignore the vector store in the bottom tier.
  • API logical design
  • BYOK design note: BYOK LLM Keys for SDP Consumers
    • Current source status: draft.
  • a start on some sequence diagrams. This is in LucidChart, you may need an account. There isn't much there.
